FastTrack Essentials for SkyView HDX
104357-000NOTE - FastTrack Kits are built to order. Please allow 3 to 5 business days for order processing.
Whether it be a new installation or a retrofit, FastTrack Essentials makes your SkyView system installation easier and faster than ever before.

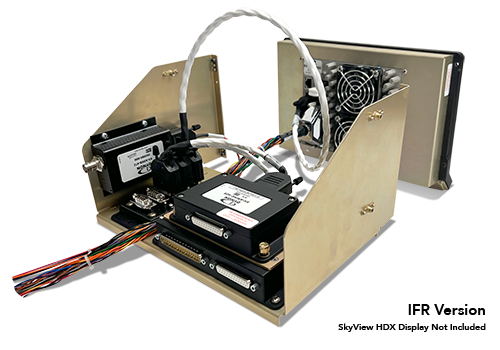

FastTrack Essentials provides you with the essential modules every system requires, mounted to a module mounting tray and networked together with SkyView network cables and a SkyView Network Hub.
Simply remove the FastTrack Essentials product assembly from its box, fasten the assembly to your instrument panel with 4 rivets, and fasten your 10inch SkyView HDX display screen by threading the 4 provided mounting screws into the provided nutplates to get a head start on your installation.
The FastTrack Essentials products are available in both VFR and IFR versions
Note: Compatible with SkyView HDX only. Not compatible with SkyView Classic, Touch, or SE.
FastTrack Essentials VFR:
- Universal Module Mounting Tray for SV-HDX1100
- SV-EMS-220 EMS Module
- SV-ADSB-472 ADS-B In Receiver Module
- SV-NET-HUB SkyView Network Hub
- SV-NET-XinCC SkyView Network Cables
- SkyView Display Harness
- ADS-B Receiver Harness Kit
FastTrack Essentials IFR:
- Universal Module Mounting Tray
- SV-EMS-220 EMS Module
- SV-ARINC-429 Module
- SV-ADSB-472 ADS-B In Receiver Module
- EMS to ADAHRS/ARINC Module Stacking Kit
- SV-NET-HUB SkyView Network Hub
- SV-NET-XinCC SkyView Network Cables
- SkyView Display Harness
- ADS-B Receiver Harness Kit
