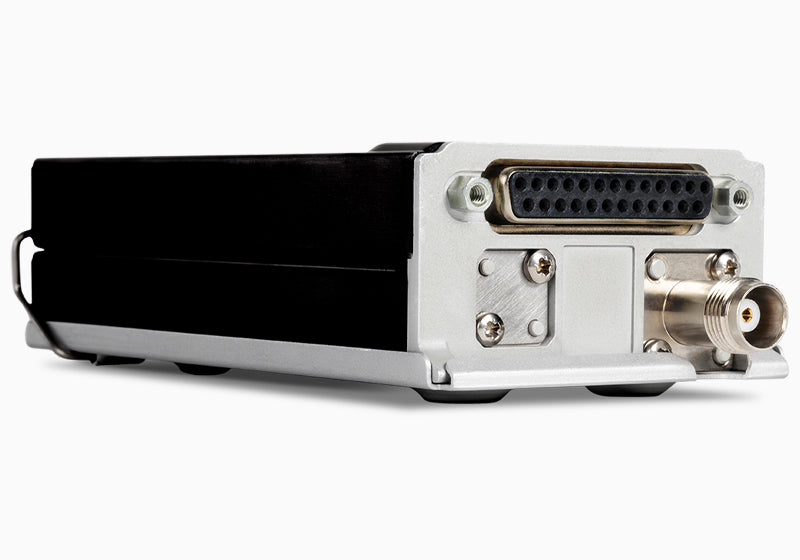

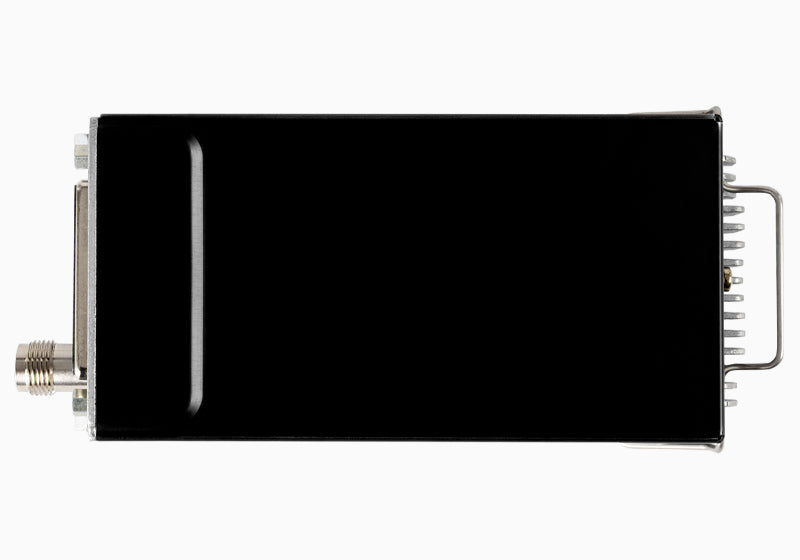

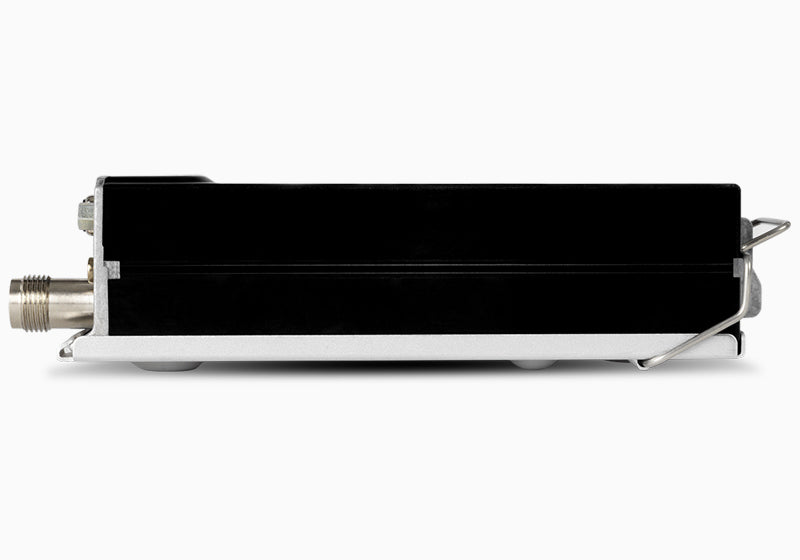

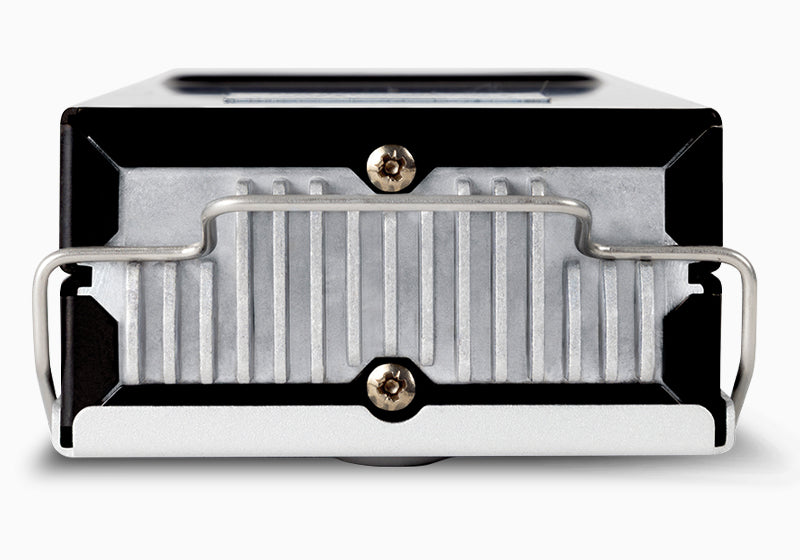

SkyView Mode-S Transponder
105544-000TSO'd, Class 1, Mode-S Transponder with TIS traffic reception (US only) and 1090ES ADS-B Out capability. When paired with the Dynon SV-GPS-2020 or other suitable position source, the SV-XPNDR-263 is a rule-compliant ADS-B Out solution.

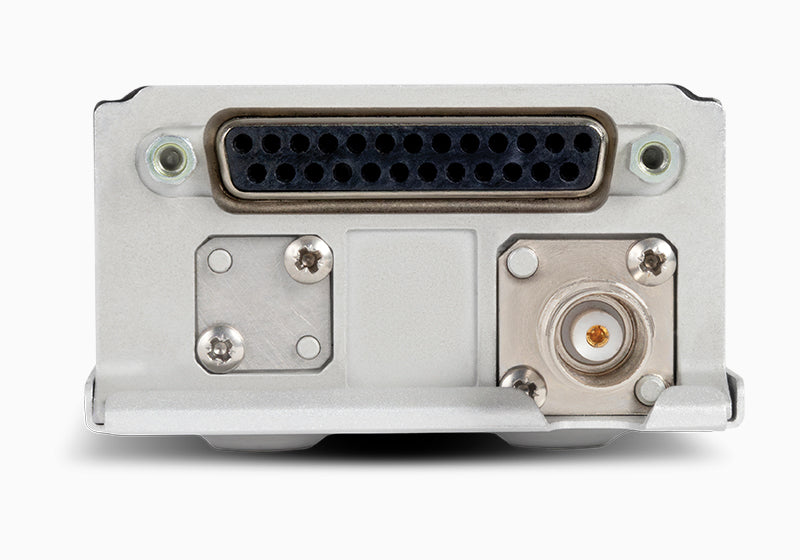

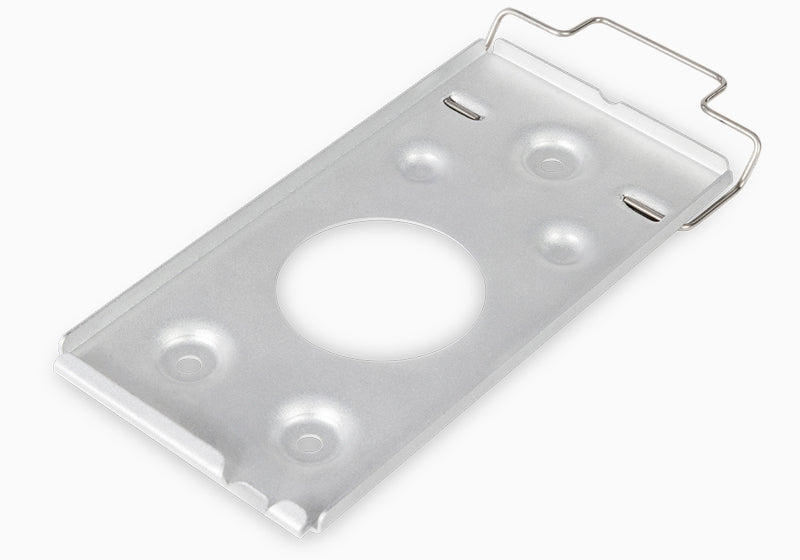

The SV-XPNDR-263 is significantly lighter (1.8 oz) and smaller than previous models. For maximum compatibility with existing installation locations, it features the same mounting tray screw locations, compact quick-release mounting tray design, and electrical and antenna connections.
Note: Antenna not included. See SkyView Installation Manual for recommendations.
Integrated: Made for the SkyView System, with control and annunciation appearing on the SkyView Display. The transponder module can be mounted anywhere in the airplane that is convenient.
ADS-B Out via 1090 ES: Meets USA and Europe ADS-B Out Mandates. FAA ADS-B Mandate compliance requires that a suitable GPS position source such as the Dynon SV-GPS-2020 GPS Receiver/Antenna module be connected. Alternatively, a TSO’d GPS position source can be used, typically from a connected certified GPS IFR navigator.
Traffic: Features TIS Traffic (USA).
Dynon Warranty, Support, and Service: These transponder come with a 3-year Dynon Warranty.
